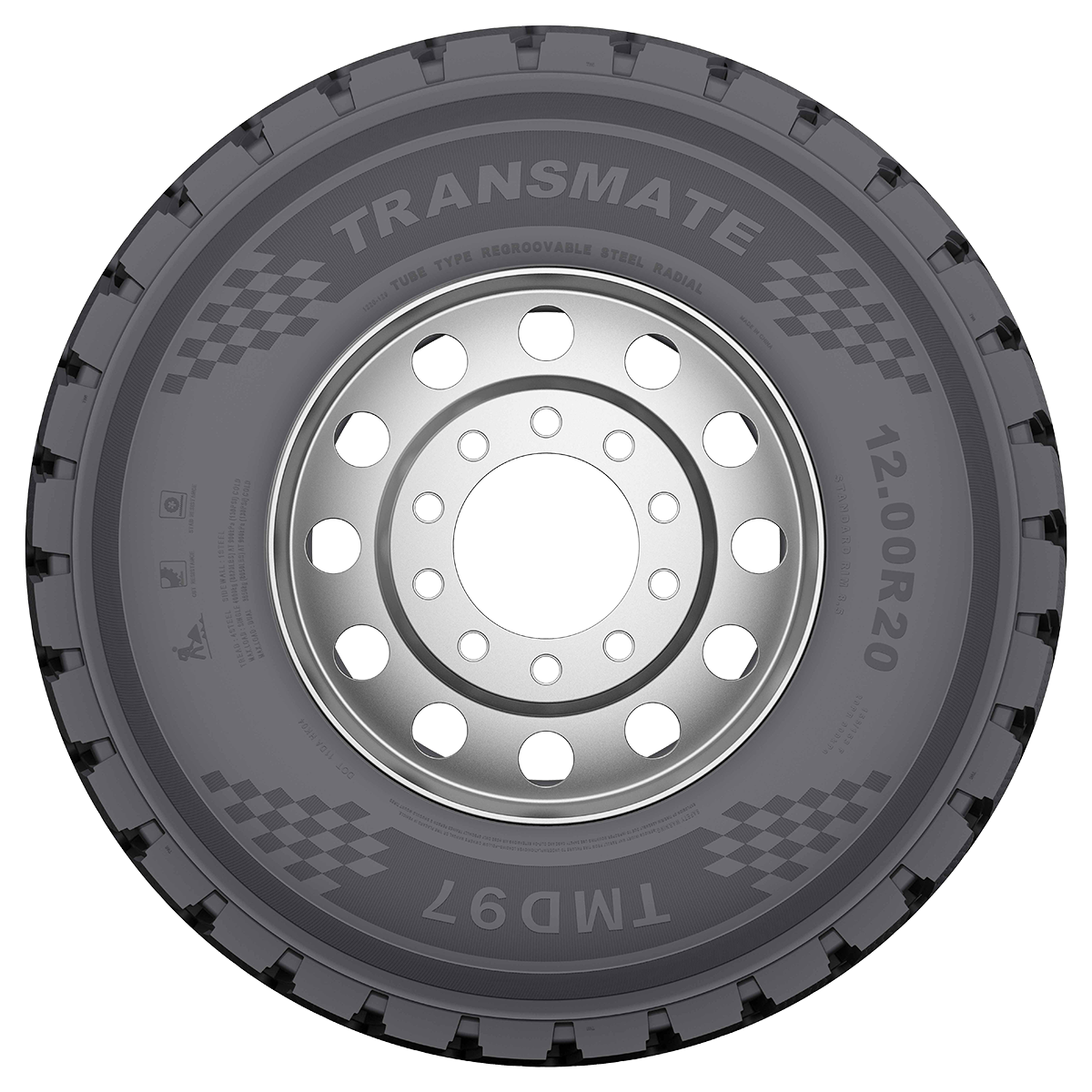

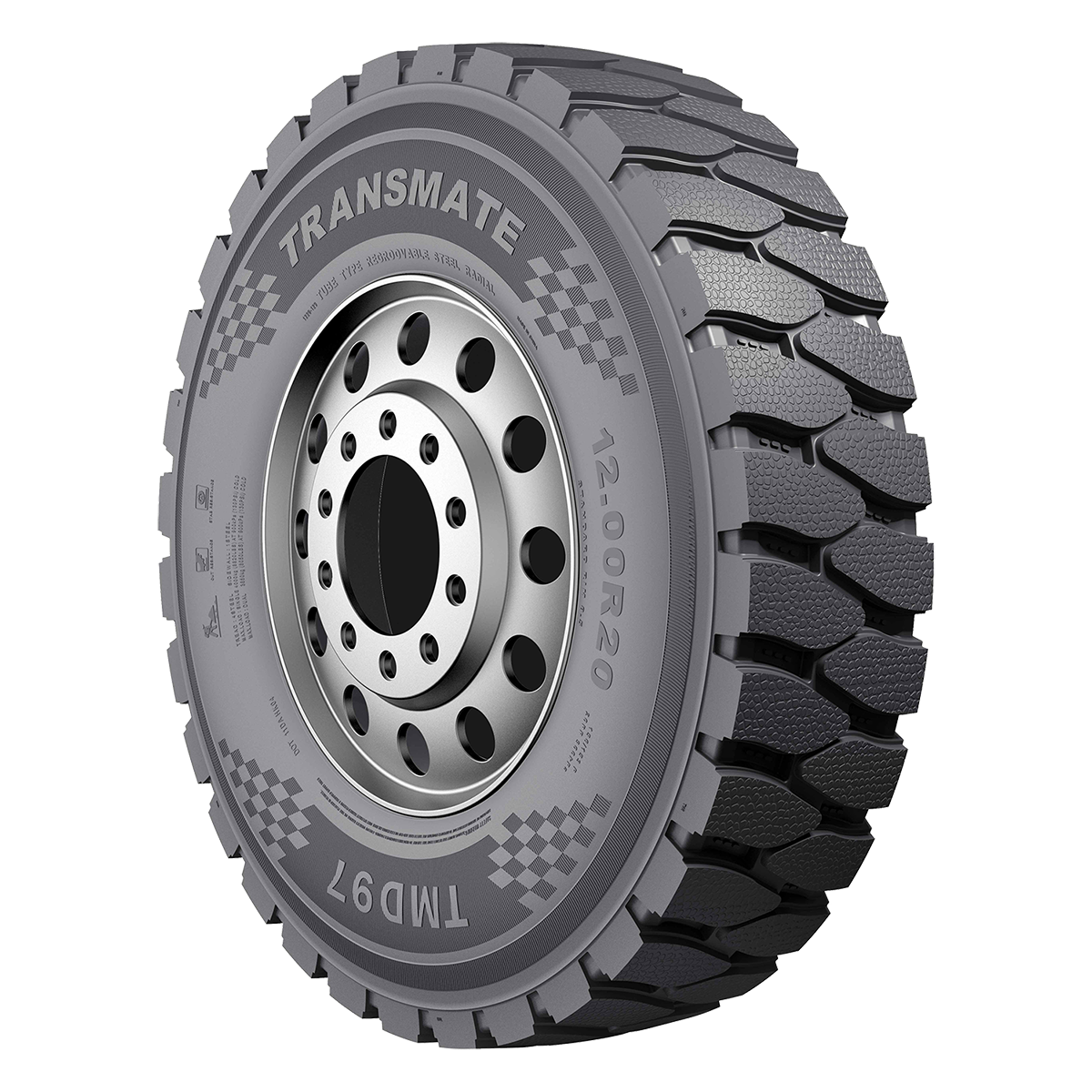

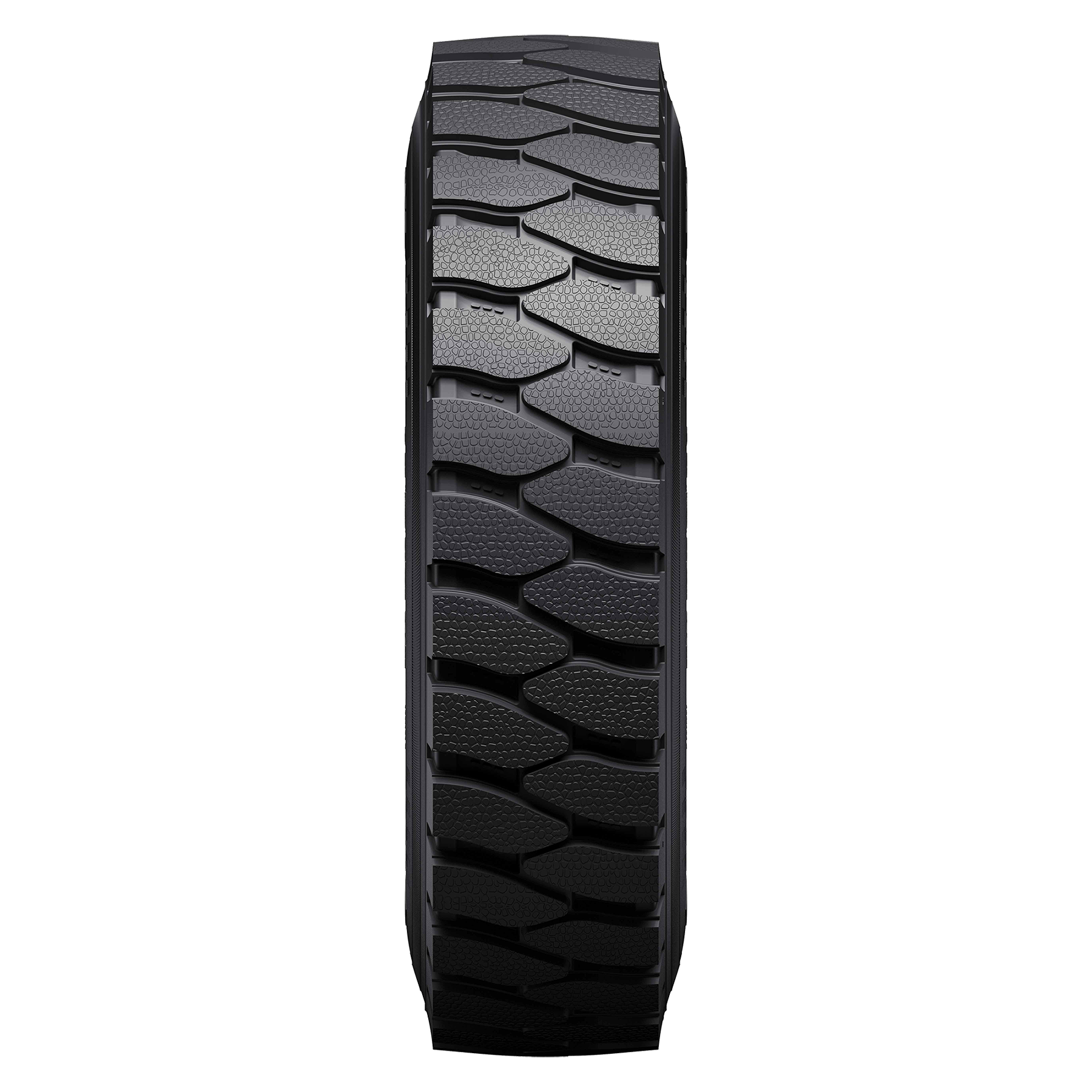

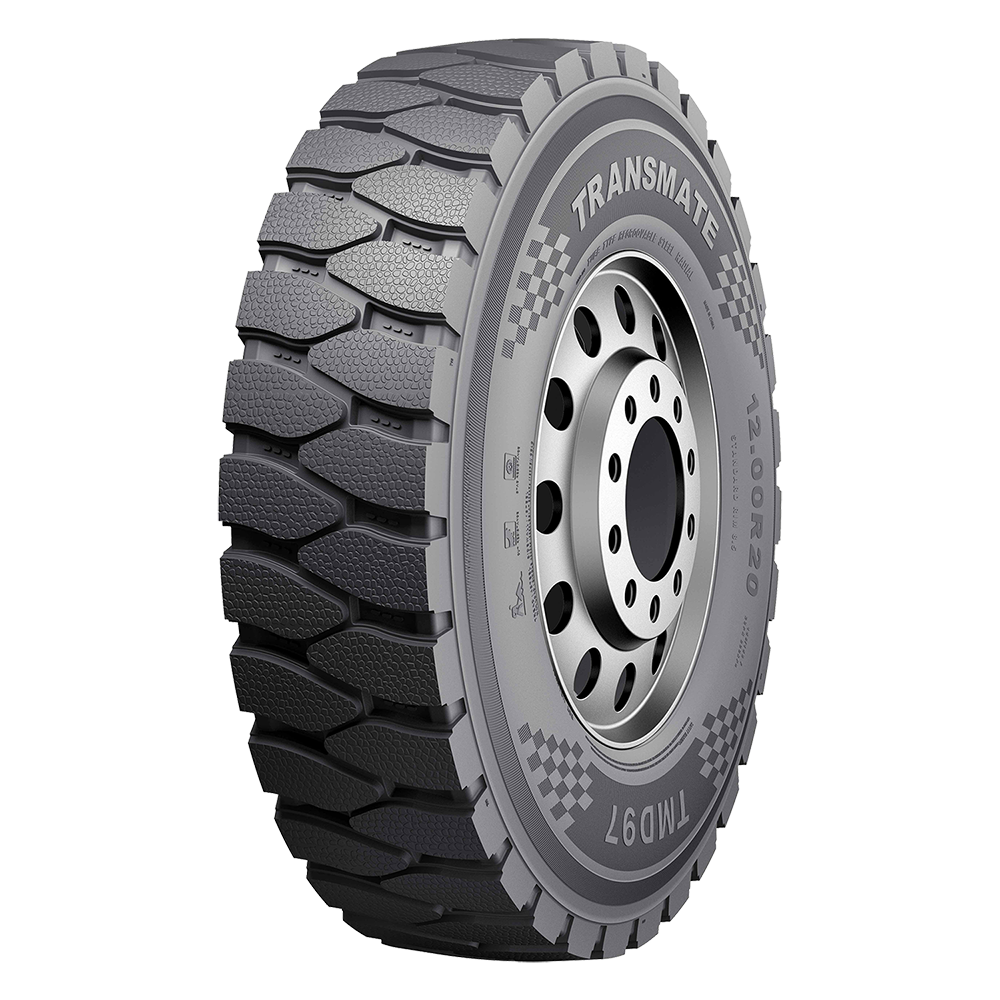

TMD97

▶ Applicable for driving wheels. Suitable for short distance with low speed on mining andbad roads.
▶ Excellent pattern design offers good pulling force.
▶ Special tread compound offers excellent cut resistance.
▶ Reinforced bead area reduces the deformation of this area, provides excellent load capacity than normal tyres.
Recommended Application
LONG HAUL
2 12 15
SIZE
ALL SIZE
SizeService IndexPRTread Depth (mm)Meas. RimO.D(mm)Section Width (mm)Max. Load SingleCapacity(kg) DualInflation SinglePressure(kpa) Dual
11.00R20152/149F18248108529335503250930930
12.00R20156/153F20258.5112531540003650900900
12.00R20158/155F22258.5112531542503875970970
