ICE KNIGHT

Recommended Application

LONG HAUL

Features

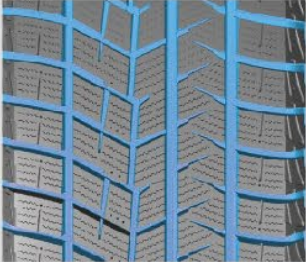

3D Steel Sheet

Tread surface blocks use high-density 3D pocket technology.Such design ensures overall rigidity of tread surface, and improves steering and grip force.

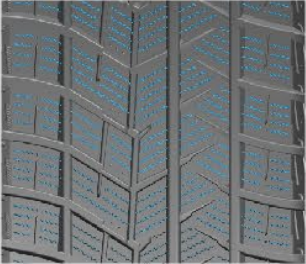

Stable steering on icy and snowy roads

The middle area of the tread is interlaced with the icy road surface to reduce the ice surface: The water film prevents the tires from skidding on ice and improves the stability, Wide trench design ensures outstandingsteering and traction performance, the high grip contained in the rubber compound improves the tire's grip on icy and snowy roads and reduces rolling resistance.

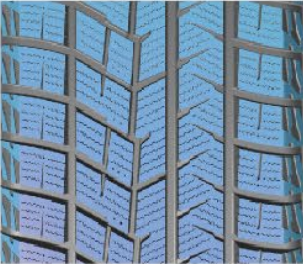

Block pattern design

Block pattern design provides excellent grip for tiresand lateral stiffness to help the vehicle reach its maximumstability.

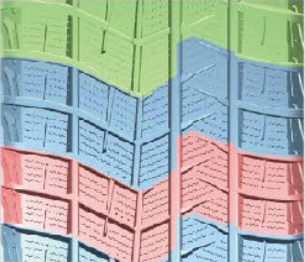

Variable pitch silent pattern design

Variable pitch frequency conversion pattern,through analysis and optimization, the sound energy tends to be evenly dispersed in a relativelyopen frequency range, avoiding energy concentration in the frequency band that is easily perceptible to human ears,which ensures quietly driving.

SIZE

13"

14"

15"

16"

17"

18"

19"

20"

21"

22"

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
							(kg)	(kpa)
13	175/70R13	82T		5J	177	576	475	300	D	E	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
14	185/60R14	82T		5½J	189	578	475	300	D	D	B
14	175/65R14	82T		5J	177	584	475	300	D	E	B
14	185/65R14	86T		5½J	189	596	530	300	D	E	B
14	185/70R14	88T		5½J	189	616	560	300	D	E	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
15	195/55R15	85T		6J	201	595	515	300	D	D	B
15	195/60R15	88T		6J	201	615	560	300	D	D	B
15	185/65R15	88T		5½J	189	621	560	300	D	E	B
15	195/65R15	91T		6J	201	635	615	300	D	D	B
15	205/65R15	94T		6J	209	647	670	300	D	D	B
15	205/70R15	96T		6J	209	669	710	300	C	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
16	215/55R16	93T		7J	226	642	650	300	C	D	B
16	195/60R16	89T		6J	201	640	580	300	D	D	B
16	205/60R16	92T		6J	209	652	630	300	D	D	B
16	215/60R16	95T		6½J	221	664	690	300	D	D	B
16	225/60R16	98T		6½J	228	676	750	300	C	D	B
16	205/65R16	95T		6J	209	672	690	300	D	D	B
16	215/65R16	98T		6½J	221	686	750	300	C	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
17	225/45R17	91H		7½J	225	634	615	300	D	D	B
17	205/50R17	89H		6½J	214	638	580	300	D	D	B
17	225/50R17	94H		7J	233	658	670	300	D	D	B
17	205/55R17	95H	XL	6½J	214	658	690	340	C	D	B
17	215/60R17	96T		6½J	221	690	710	300	C	D	B
17	225/60R17	99S		6½J	228	702	775	300	C	D	B
17	225/65R17	102S		6½J	228	724	850	300	C	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
18	245/40R18	93H		8½J	248	653	650	300	D	D	B
18	255/40R18	95H		9J	260	661	690	300	D	D	B
18	225/45R18	95H	XL	7½J	225	659	690	340	D	D	B
18	235/45R18	94H		8J	236	669	670	300	D	D	B
18	245/45R18	96H		8J	243	677	710	300	D	D	B
18	215/50R18	92H		7J	226	673	630	300	C	D	B
18	225/50R18	95H		7J	233	683	690	300	D	D	B
18	235/50R18	97T		7½J	245	693	730	300	D	D	B
18	215/55R18	95H		7J	226	693	690	300	C	D	B
18	225/55R18	98T		7J	233	705	750	300	D	D	B
18	235/55R18	100T		7½J	245	715	800	300	D	D	B
18	225/60R18	100S		6½J	228	727	800	300	C	D	B
18	235/60R18	103S		7J	240	739	875	300	D	D	B
18	265/65R18	114T		8J	272	801	1180	300	C	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
19	245/35R19	93H	XL	8½J	248	655	650	340	D	D	B
19	235/40R19	96H	XL	8½J	241	671	710	340	D	D	B
19	245/40R19	98H	XL	8½J	248	679	750	340	D	D	B
19	225/45R19	92H		7½J	225	685	630	300	D	D	B
19	235/45R19	95T		8J	236	695	690	300	D	D	B
19	245/45R19	98H		8J	243	703	750	300	D	D	B
19	255/45R19	104T	XL	8½J	255	703	900	340	D	D	B
19	235/50R19	99T		7½J	245	719	775	300	D	D	B
19	225/55R19	99T		7J	233	731	775	300	C	D	B
19	255/60R19	113T	XL	7½J	260	789	1150	340	C	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	(kg)	(kpa)	Fuel efficiency class	Wet grip class	External rolling noise class
20	255/40R20	101T	XL	9J	260	712	825	340	D	D	B
20	245/45R20	99H		8J	243	728	775	300	D	D	B
20	255/45R20	101H		8½J	255	738	825	300	D	D	B
20	235/50R20	100T		7½J	245	744	800	300	D	D	B
20	245/50R20	102T		7½J	253	754	850	300	D	D	B
20	255/50R20	109T	XL	8J	265	764	1030	340	D	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
							(kg)	(kpa)
21	265/45R21	108T	XL	9J	266	771	1000	340	D	D	B

Inches	Size	LI/SS	XL	Measuring Rim	Section Width （mm）	Overall Diameter （mm）	Max.Load	Max.Pressure	Fuel efficiency class	Wet grip class	External rolling noise class
							(kg)	(kpa)
22	265/40R22	106T	XL	9½J	271	771	950	340	C	D	B
